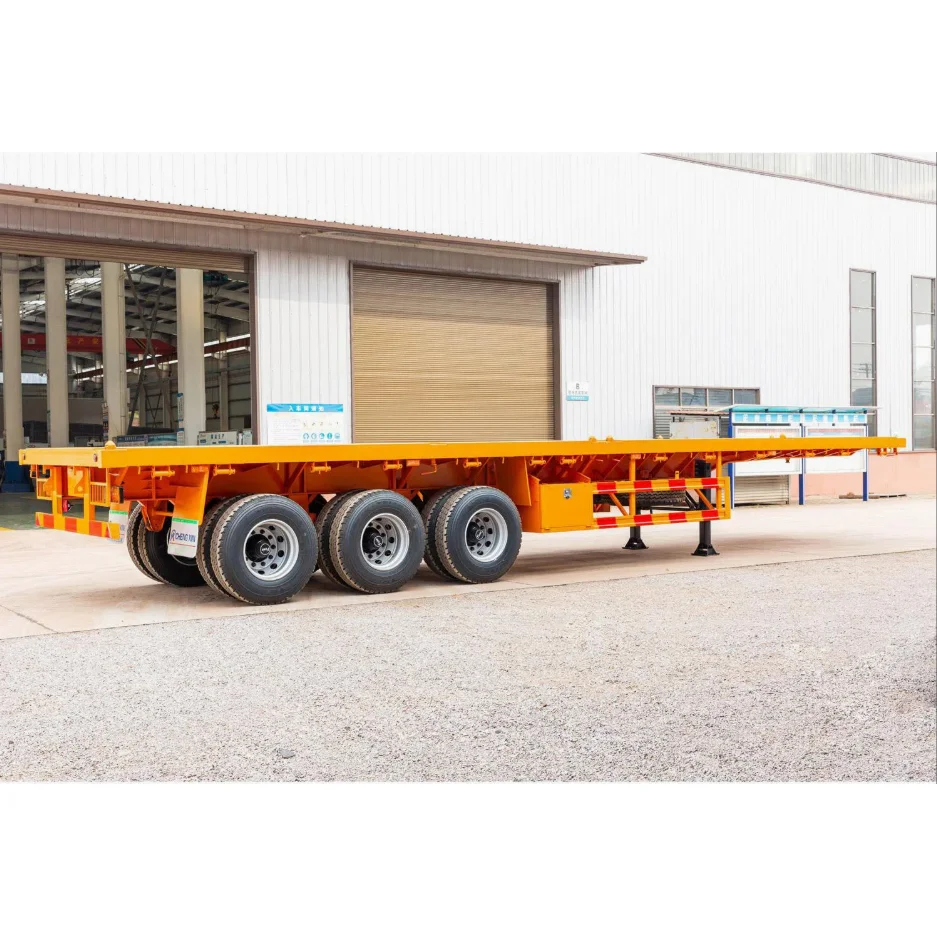

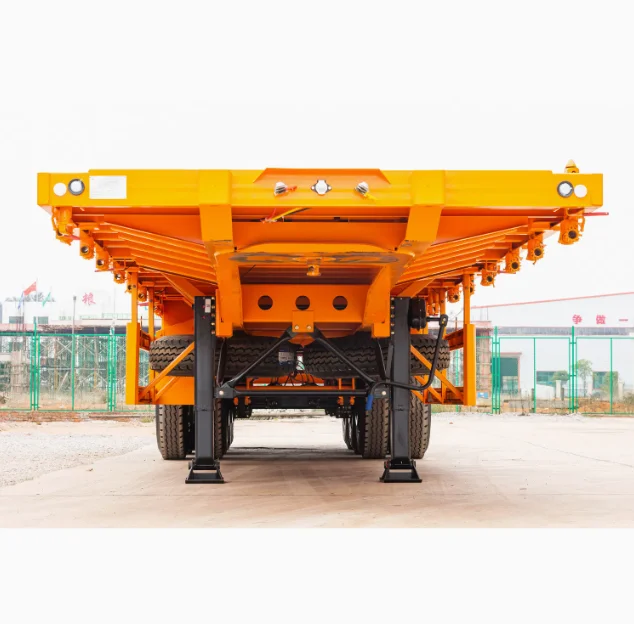

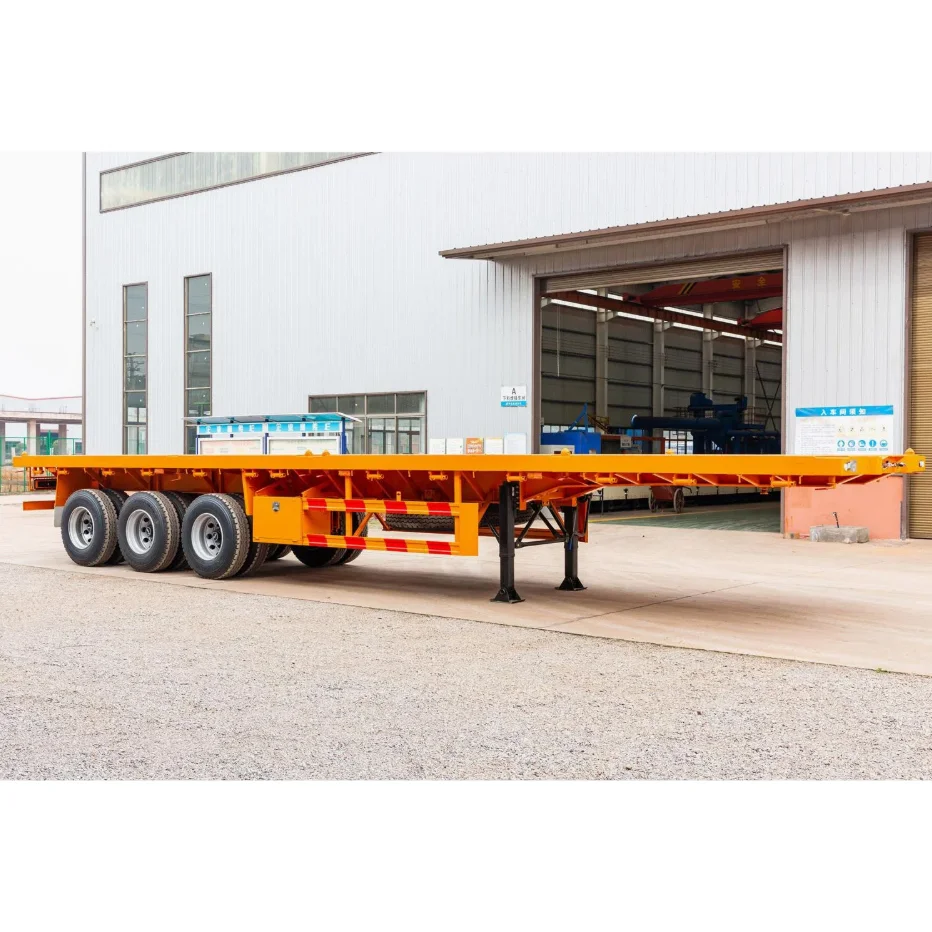

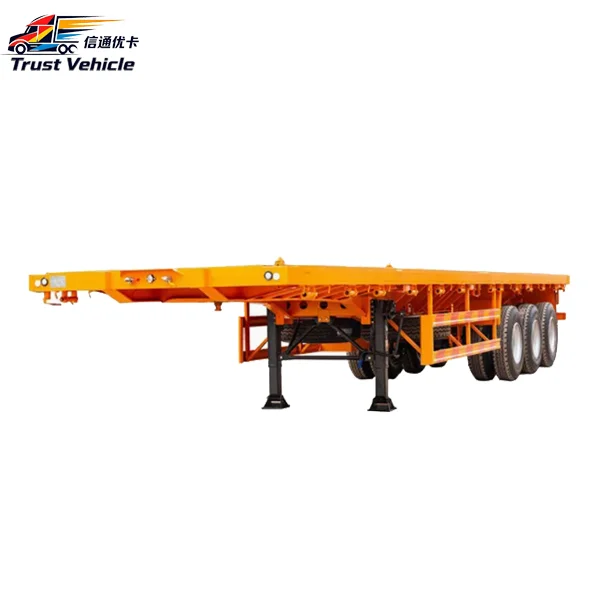

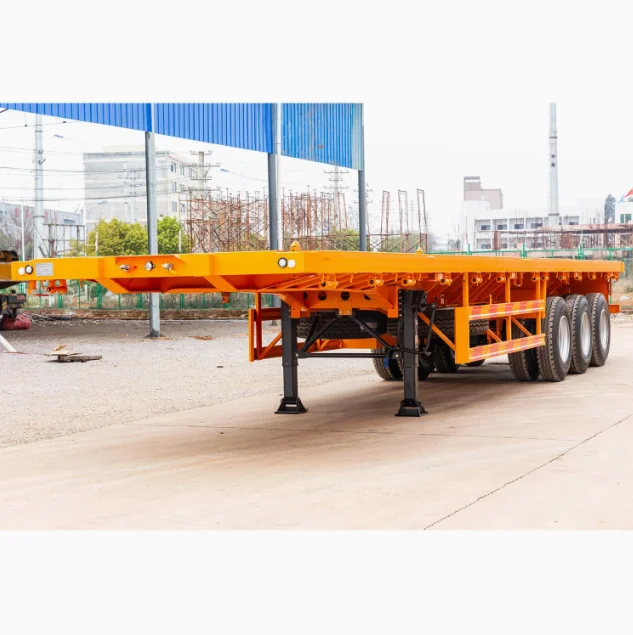

3 Axles Flatbed Semi Trailer

This 3-axle flatbed container semi trailer is a hot-selling multi-functional transport equipment for global logistics. It is mainly used for loading and transporting 20ft/40ft standard containers, bulk cargo, steel materials, construction materials and other heavy goods. Adopting high-strength steel material and reinforced beam structure, it features super load-bearing capacity, stable performance and long service life. Suitable for ports, freight yards, highway long-distance transportation and complex road conditions in Africa, Southeast Asia and South America.

Send Inquiry

Product Description

Standard Technical Parameters

Model	3 Axles 40ft Flatbed Container Semi Trailer
Overall Dimension	13950mm × 2500mm × 1500mm (Custom available)
Axle Quantity	3 axles (BPW/FUWA optional)
Tare Weight	About 7000KG
Load Capacity	40-60 Ton
Applicable Container	20ft / 40ft standard container
Main Beam	Height 500mm, upper flange 14mm, lower flange 14mm, web 8mm
Floor Plate	3mm anti-slip steel plate
Fixed Device	12 sets high-strength twist locks
Brake System	Standard drum brake, disc brake optional
Tire Specification	12 units standard tires (Customizable)
Surface Treatment	Sand blasting + anti-rust primer + durable topcoat

Application Scenarios

Widely used in port container transportation, highway freight logistics, construction material transportation, steel coil cargo transport, municipal engineering and long-distance heavy cargo delivery.

Key Advantages

Strong Multi-Axle Load Capacity

The 3-axle structure provides excellent weight distribution, ensuring stable and reliable heavy cargo transportation.

Versatile Cargo Transport

Ideal for containers, machinery, steel, and bulk goods, offering flexible applications across logistics and construction industries.

Durable High-Strength Frame

Built with reinforced steel, the flatbed semi trailer delivers long-lasting durability and resistance to deformation under heavy loads.

Efficient Loading & Unloading

Open flatbed design allows quick and easy loading from multiple sides, improving operational efficiency and saving time.

Enhanced Road Stability

Optimized axle configuration improves balance and reduces vibration, ensuring safer and smoother transport on long-distance routes.

Frequently Asked Questions

What is the load capacity of this 3-axle flatbed trailer?

The trailer features a robust load capacity of 40 to 60 tons, supported by a heavy-duty 3-axle design optimized for even weight distribution.

What sizes of containers can this semi-trailer carry?

It is specifically designed to transport standard 20ft and 40ft containers, equipped with 12 sets of high-strength twist locks to secure the cargo.

Can the dimensions and specifications of the trailer be customized?

Yes. While the standard dimension is 13950mm x 2500mm x 1500mm, customization options are available for sizes, axle types (BPW/FUWA), and tire specifications to meet your local requirements.

What materials are used for the main beam and floor plate?

The main beam is constructed with high-strength reinforced steel (height 500mm, upper flange 14mm, lower flange 14mm, web 8mm), and the floor plate features a 3mm anti-slip steel plate for maximum load stability.

How is the trailer protected against rust and corrosion?

The trailer undergoes a comprehensive surface treatment process including thorough sandblasting, an anti-rust primer application, and a durable topcoat to withstand harsh environmental conditions.
