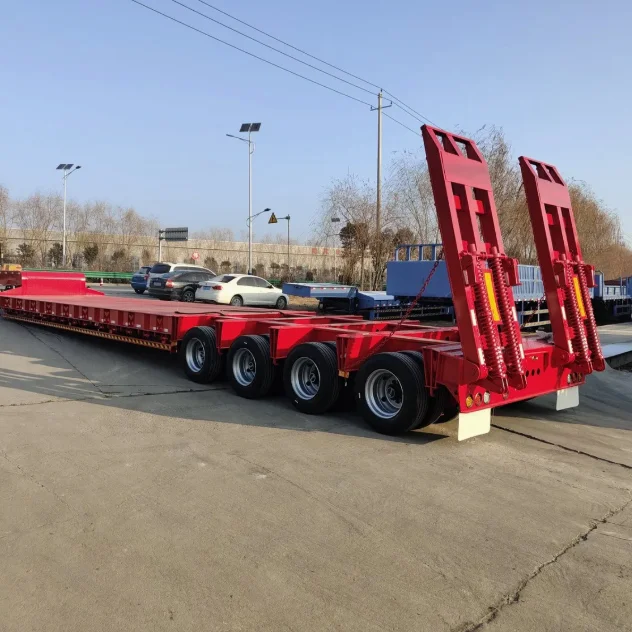

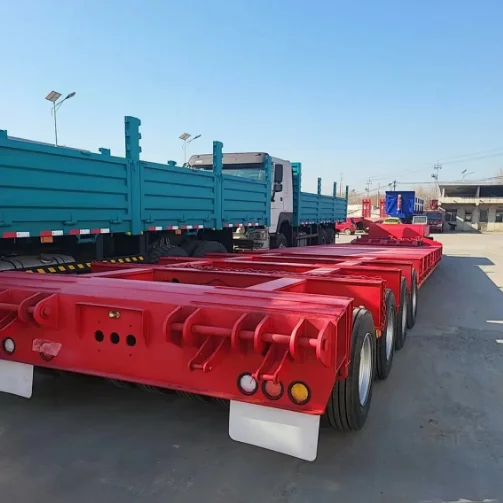

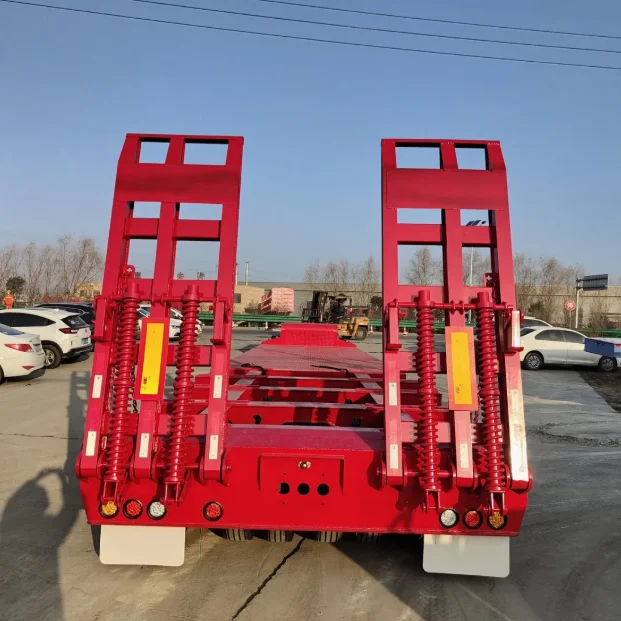

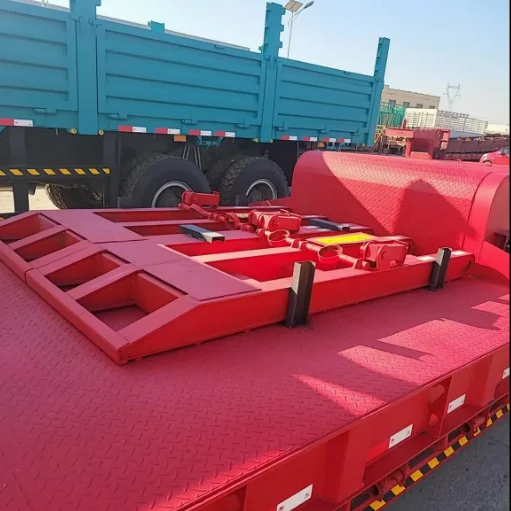

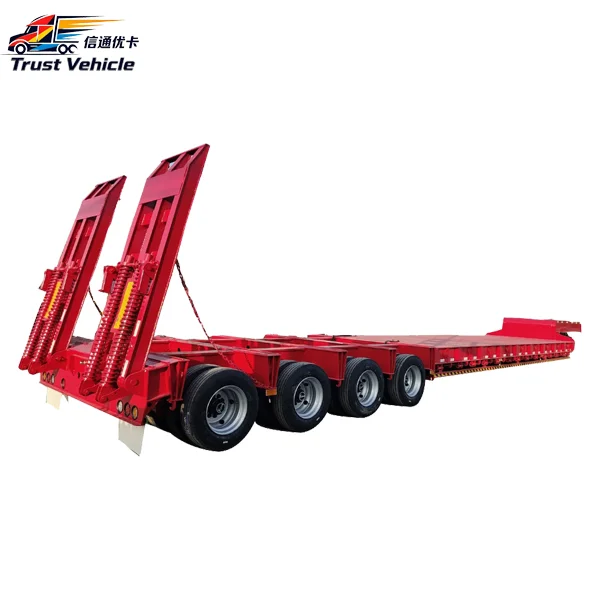

4-Axle Lowbed Semi Trailer

This 4-axle lowbed semi trailer is a professional heavy-duty transport equipment designed for oversized and overweight cargo. Different from ordinary flatbed trailers, it adopts ultra-low deck height design to lower the center of gravity of cargo, ensuring high stability during transportation. Equipped with four-axle load balancing structure and high-strength steel beam, it supports super heavy load up to 80-120 tons. Widely used for transporting excavators, loaders, cranes, engineering machinery, steel structures and oversized equipment. It adapts to complex road conditions and long-distance freight in Africa, Southeast Asia and other emerging markets.

Send Inquiry

Product Description

Standard Technical Parameters

Model	4 Axle Heavy Duty Lowbed Semi Trailer
Overall Dimension	15500mm × 2500mm × 3330mm (Extendable & Custom available)
Axle Quantity	4 axles (BPW/FUWA/SAF optional, 13ton/16ton per axle)
Tare Weight	About 8500KG
Load Capacity	80–120 Ton
Deck Height	Ultra low design for over-height machinery transport
Main Beam	High-strength Q345B steel, reinforced integral beam structure
Loading Ramp	Spring-assisted / hydraulic ramp optional
Suspension System	Mechanical leaf spring suspension / air suspension optional
Brake System	Standard drum brake, WABCO EBS/ABS system optional
Tire Specification	16 units heavy-duty tires (Customizable)
Surface Treatment	Full sand blasting + anti-rust primer + weather-resistant topcoat

Application Scenarios

Specially used for heavy and oversized cargo transportation: excavators, loaders, bulldozers, cranes, road construction machinery, steel structures, wind power equipment, drilling rigs and other large engineering equipment. Suitable for highway heavy freight, engineering construction, port logistics and cross-border transportation.

Advantages

Ultra-High Load Capacity

Designed with a 4-axle reinforced structure, the lowbed semi trailer delivers exceptional load-bearing performance for heavy machinery and oversized cargo.

Lower Deck for Easy Loading

The ultra-low platform design allows convenient loading and unloading of construction equipment, excavators, and industrial machinery.

Enhanced Road Stability

Multi-axle configuration improves weight distribution, ensuring smoother towing performance and greater safety on long-distance transport.

Heavy-Duty Reinforced Structure

Built with high-strength steel, the trailer frame provides superior durability, impact resistance, and long service life under extreme conditions.

Versatile Heavy Equipment Transport

Ideal for transporting construction machinery, mining equipment, and large industrial loads, offering reliable performance across demanding applications.

Frequently Asked Questions

Q1 What is the load capacity of the 4 Axle Heavy Duty Lowbed Semi Trailer?

The standard load capacity of this trailer ranges from 80 to 120 Ton, which is optimized for transporting heavy construction and industrial machinery.

Q2 Can the dimensions of the lowbed semi trailer be customized?

Yes, while the standard overall dimension is 15500mm × 2500mm × 3330mm, extendable designs and custom dimensions are available to suit specific oversized cargo requirements.

Q3 What type of suspension and axle options are available?

We offer mechanical leaf spring suspension or air suspension systems. Axle choices include BPW, FUWA, or SAF options, rated at 13ton/16ton per axle.

Q4 What material is used for the main beam structure?

The trailer is manufactured using high-strength Q345B steel with a reinforced integral beam structure to ensure ultimate durability and resistance to heavy impacts.

Q5 What typical cargo is this lowbed trailer designed to transport?

It is ideal for heavy and oversized cargo such as excavators, loaders, bulldozers, cranes, road construction machinery, steel structures, wind power equipment, and drilling rigs.
