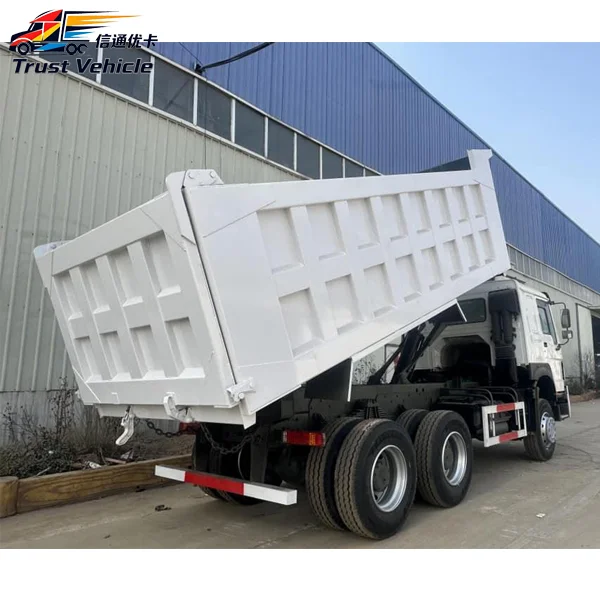

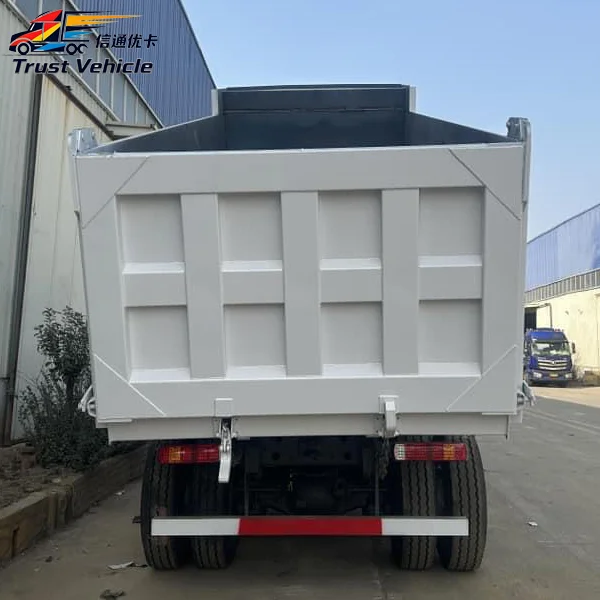

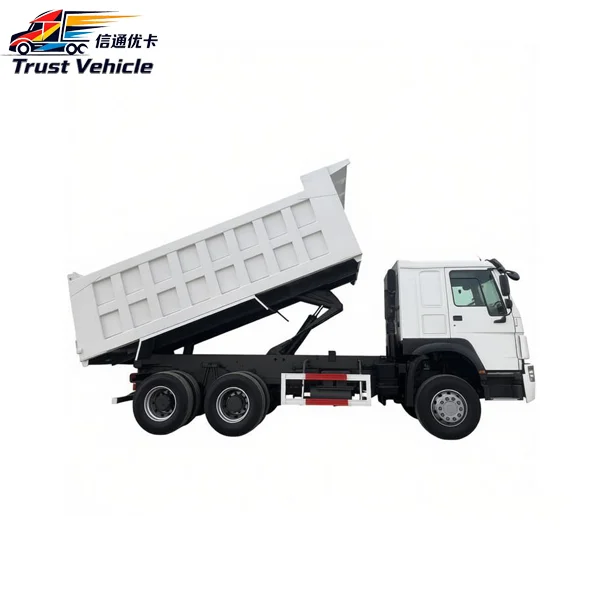

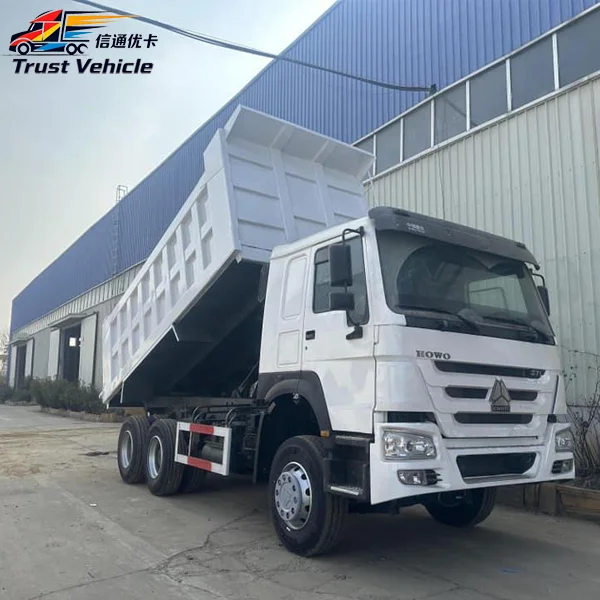

HOWO Hydraulic Tipping Dump Truck

This HOWO 6×4 hydraulic tipping dump truck is a heavy-duty engineering transport vehicle built by Sinotruk, specially designed for bulk cargo transportation scenarios such as mine ore, construction sand and gravel, earthwork muck, and road engineering materials. Equipped with a high-power reliable engine and full hydraulic lifting unloading system, it adopts a classic 6×4 rear double drive layout, with strong bearing capacity and outstanding off-road passing performance. The thickened reinforced cargo box can realize rapid automatic tipping and unloading, greatly cutting manual unloading time. The whole vehicle features robust frame structure, durable wearing parts and mature after-sales support, widely exported to Africa, Southeast Asia, Central Asia and other global construction & mining markets.

Send Inquiry

Product Description

Item	Specification Parameter
Model	HOWO 6×4 Hydraulic Tipping Dump Truck
Drive Form	6×4 (3 axles, front steering single axle + rear double drive tandem axles)
Total Gross Vehicle Weight	40,000 kg
Rated Loading Capacity	25-30 tons
Engine Model	Sinotruk WD615 / WP10 Diesel Engine
Rated Power	371HP / 400HP Optional
Emission Standard	Euro 2 / Euro 3 / Euro 5 Optional
Transmission	10-speed Heavy-Duty Manual Gearbox
Steering System	Hydraulic Power Steering
Brake System	Full Air Brake + Exhaust Auxiliary Brake
Cab	HOWO Standard Single Row Cab, Shock Absorption Suspension, Air Conditioner
Cargo Box Material	High-strength Manganese Steel Plate, Reinforced Grid Structure
Cargo Box Dimension (L×W×H)	5800×2300×1500 mm (Customizable)

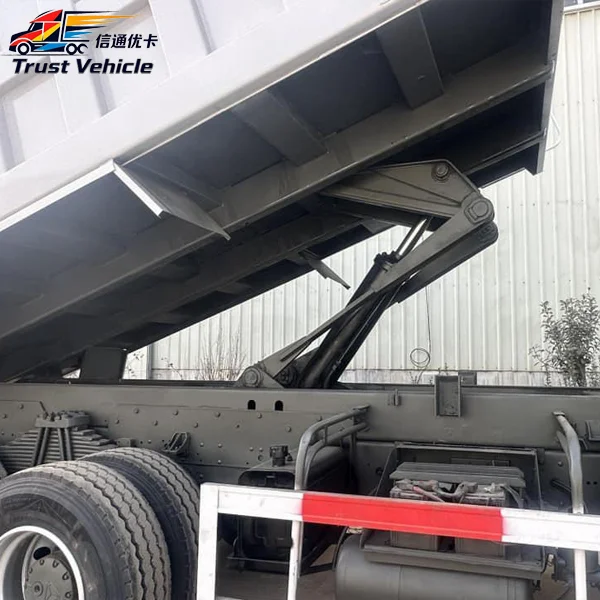

Tipping System	Front-mounted Single / Double Hydraulic Lifting Cylinder
Tire Specification	12.00R20 Heavy-Duty Engineering Tire
Fuel Tank Capacity	300L
Suspension	Heavy-Duty Leaf Spring Balanced Suspension
Color	White (Customizable per client demand)
Application Scenarios	Mine transportation, construction earthwork, sand & gravel haulage, infrastructure engineering

Advantages

Strong Power & Heavy Load

Reliable high-horsepower engine with 6×4 drive, stable traction for rough roads, rated load 25–30 tons.

Fast Hydraulic Unloading

High-pressure hydraulic cylinder lifts the container quickly and smoothly, cutting operation time greatly.

Wear-resistant Reinforced Cargo Box

Manganese steel grid-type box resists impact and abrasion from stones and ores, long service life.

Tough Chassis for Harsh Roads

Heavy-duty frame, balanced suspension and thick engineering tires adapt to muddy, uneven mine roads.

Safe & Comfortable Cab

Suspension seat, air conditioner and full air brake system ensure safe and easy driving.

Easy Maintenance & Global Spare Parts

Universal spare parts with affordable cost, complete overseas after-sales support to minimize downtime.

Frequently Asked Questions

What is the rated loading capacity of this 6x4 dump truck?

The rated loading capacity of the HOWO 6×4 Hydraulic Tipping Dump Truck is 25 to 30 tons, with a total gross vehicle weight (GVW) of 40,000 kg.

What engine configurations and power options are available?

This truck is equipped with a Sinotruk WD615 or WP10 Diesel Engine, with optional rated power outputs of either 371HP or 400HP depending on your requirements.

What material is used for the cargo box and are the dimensions customizable?

The cargo box is made of high-strength manganese steel plate with a reinforced grid structure. The standard dimensions are 5800×2300×1500 mm, but they can be fully customized based on client demand.

Which emission standards does this vehicle support?

The truck can be configured to meet Euro 2, Euro 3, or Euro 5 emission standards, allowing you to choose the configuration that matches local regulations.

What are the primary application scenarios for this dump truck?

It is designed for demanding environments, making it ideal for mine transportation, construction earthwork, sand and gravel haulage, and general infrastructure engineering.
