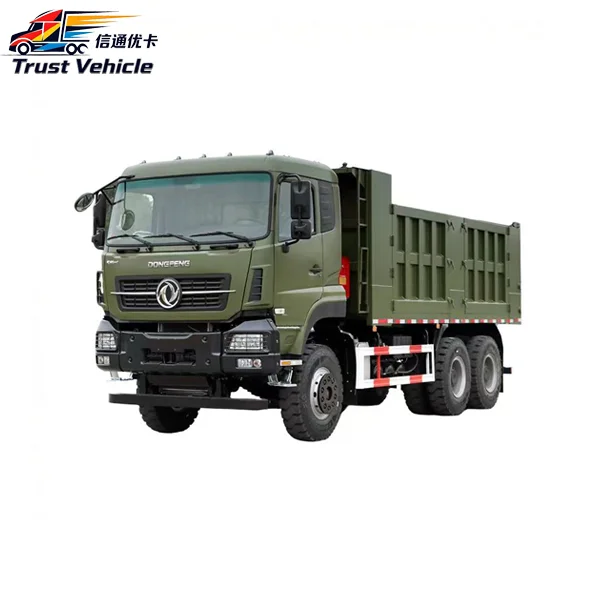

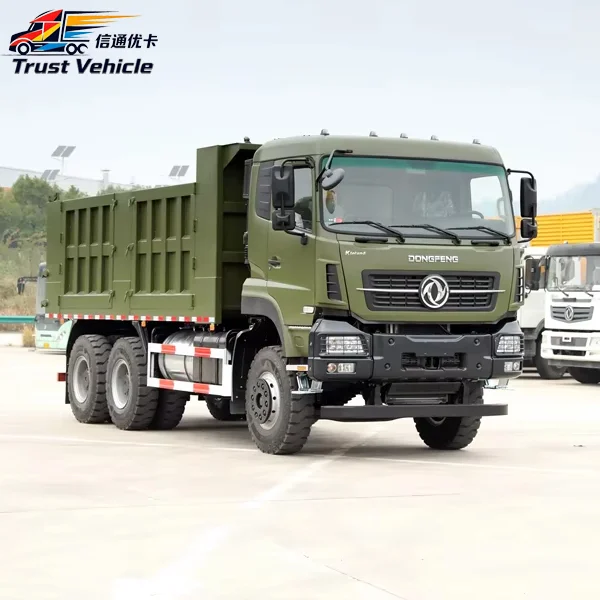

Dongfeng 6X4 Lorry Truck Tipper Truck

The Dongfeng 6×4 Tipper Truck is a heavy-duty dump truck engineered for the toughest jobs in construction, mining, and bulk material transport. Built on Dongfeng’s proven Kinland or KC platform, this 6×4 (10-wheel) configuration features a robust chassis, a powerful diesel engine, and a high-lift hydraulic dumping system. It is designed to efficiently handle loose materials like sand, gravel, coal, and demolition debris. With a reinforced cargo body, excellent terrain adaptability, and a driver-focused cab, the Dongfeng Tipper delivers high productivity and reliability under the most demanding conditions.

Send Inquiry

Product Description

Parameter	Details
Brand	Dongfeng
Model	Dongfeng Tipper
Condition	Used
Drive Type	6×4 (10 wheels)
Fuel Type	Diesel (LNG optional)
Horsepower	340 – 520 hp
Emission Standard	Euro 2, Euro 3, Euro 5, Euro 6 (depending on model)
Engine Brand	Dongfeng Cummins / Weichai / DDi
Engine Capacity	8 – 13.48 L
Cylinders	6
Maximum Torque	1500 – 2500 Nm
Transmission	Manual (9/10/12/16 speed) or AMT
Gearbox Brand	FAST / ZF / Dongfeng / Eaton
Gross Vehicle Weight (GVW)	25,000 – 49,000 kg
Load Capacity	21 – 40 tons
Cargo Body Dimensions (L×W×H)	5600-6000 mm × 2300-2500 mm × 1500 mm
Fuel Tank Capacity	400 – 550 L
Tire Number	10
Tire Size	12.00R20 / 12R22.5
Front Axle Load Capacity	7 – 9 tons
Rear Axle Load Capacity	16 + 16 tons (tandem)
Suspension	Leaf spring / Optional air suspension
Brake System	Air brake, ABS, ESC, engine brake, optional retarder
Steering	Left (Right available)
Cab Type	Sleeper cab with air suspension driver seat, AC, power steering

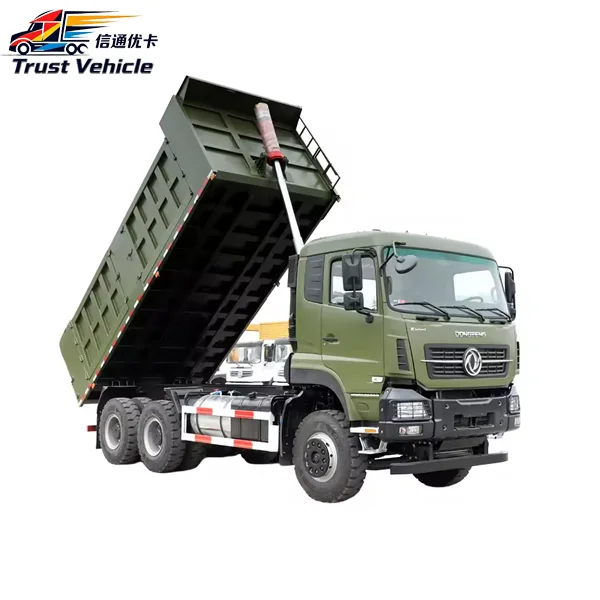

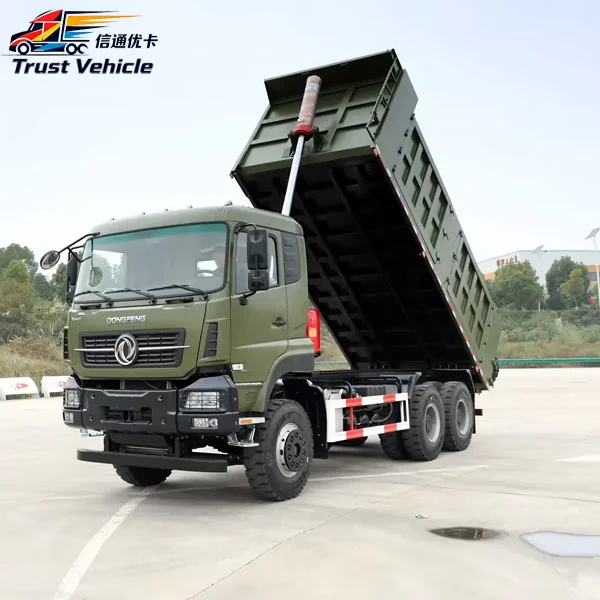

Dump Mechanism	Hydraulic front-end lift
After-sales Service	Video technical support, online diagnostics, call centers
Place of Origin	Hubei / China

Key Advantages

1. High Load Capacity

6×4 configuration with tandem rear axles supports up to 40 tons load and 49 tons GVW.

2. Powerful Engine

Dongfeng Cummins or Weichai diesel engine, 340–520 hp, with high torque for climbing and heavy loads.

3. Durable Dump Body

Reinforced steel cargo bed with hydraulic lifting system for quick, stable unloading.

4. Excellent Terrain Adaptability

10 tires and 6×4 drive provide strong traction on rough roads, mud, and slopes.

5. Reliable Build

High-strength chassis and heavy-duty axles for low maintenance and long service life.

6. Driver Comfort & Safety

Spacious sleeper cab with air suspension seat, AC, ABS, and engine brake.

7. Customizable Options

Available in different wheelbases, cargo body sizes, transmissions, and fuel types (diesel/LNG).

8. Global Support

Worldwide service network with video technical support and online diagnostics.

Frequently Asked Questions

What is the loading capacity of this Dongfeng Tipper?

The Dongfeng Tipper has a gross vehicle weight (GVW) of 25,000 to 49,000 kg and can carry a load capacity between 21 and 40 tons, supported by a heavy-duty 6x4 drive configuration.

What engine options are available for the dump truck?

It can be equipped with either Dongfeng Cummins, Weichai, or DDi engines. The engine capacity ranges from 8 to 13.48 liters, producing 340 to 520 horsepower depending on the model.

Is this truck available in right-hand drive?

Yes, while the standard steering configuration is on the left, right-hand drive (RHD) options are available to match requirements for different countries.

What type of after-sales support do you offer?

We provide video technical support, online diagnostic services, and dedicated call center support to ensure minimal downtime and efficient operation.

What are the dimensions of the cargo body?

The standard cargo body dimensions are 5600–6000 mm in length, 2300–2500 mm in width, and 1500 mm in height, featuring a front-end hydraulic lift dump mechanism.

Can the fuel type be customized?

Yes, the truck operates primarily on diesel fuel, but Liquefied Natural Gas (LNG) configurations are also available as an optional green alternative.
