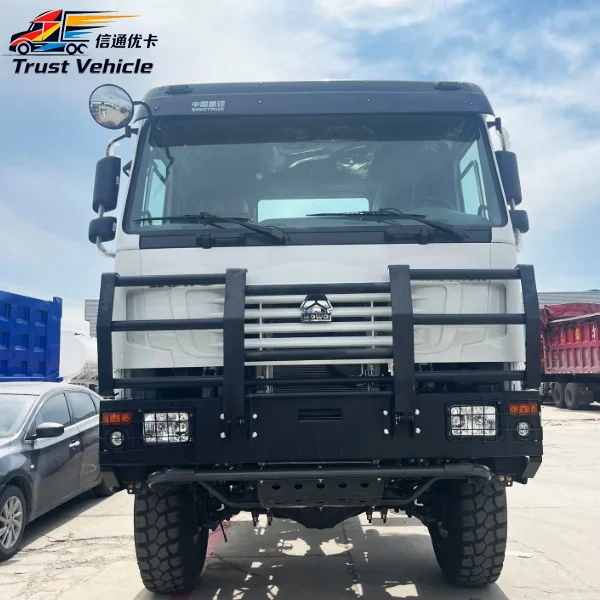

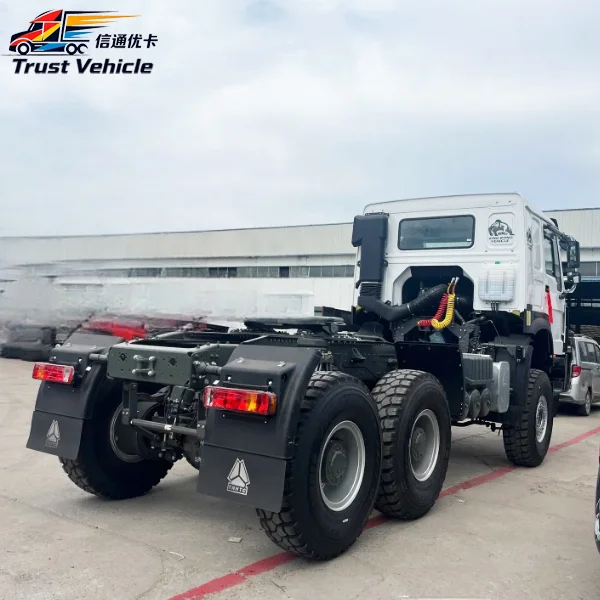

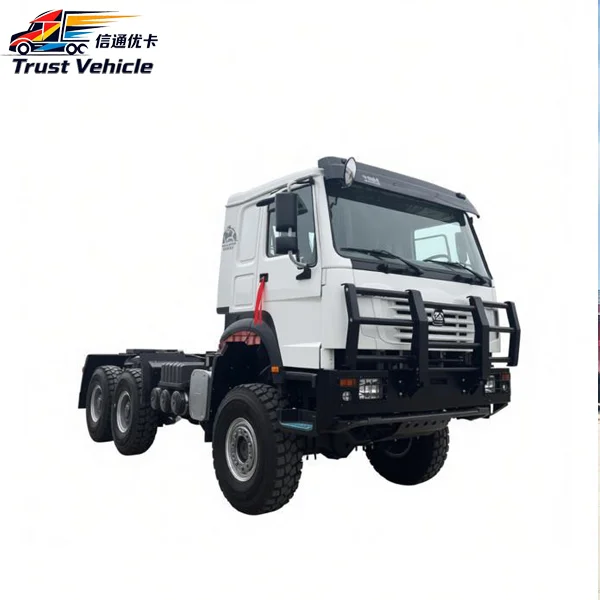

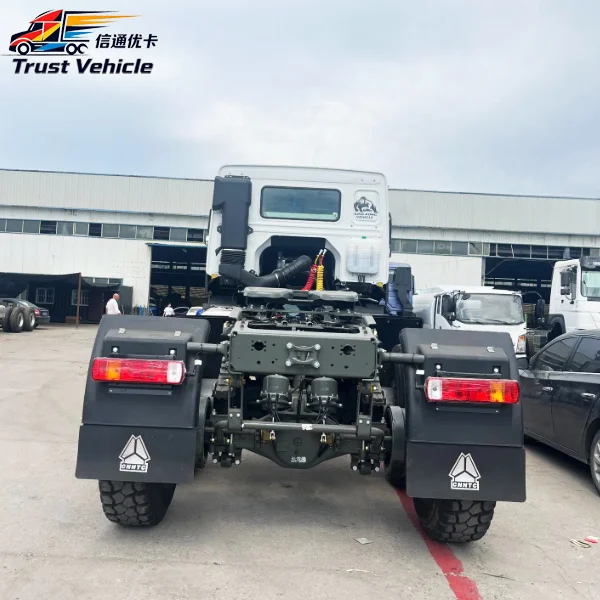

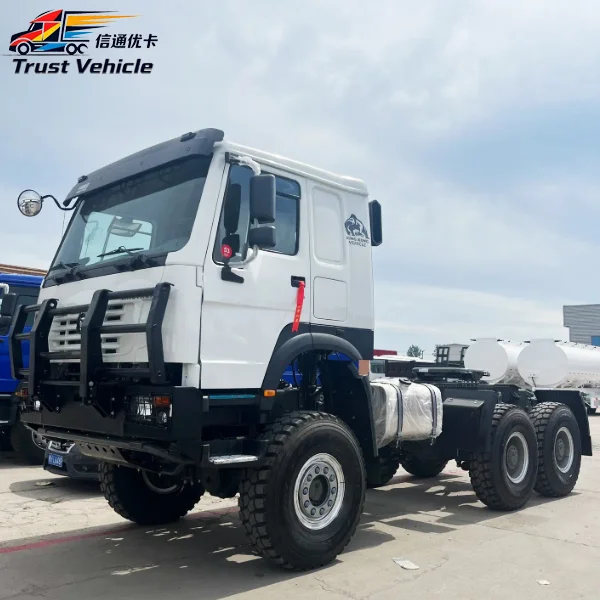

TRUST VEHICLE
TRUST VEHICLE
| Item | Specification |
|---|---|
| Chassis Model | ZZ4257N3557A |
| Drive Configuration | 6×6 all‑wheel drive |
| Engine | WD615.69, 336 HP (247 kW), Euro II |
| Displacement | 9.726 L |
| Max Torque | 1,350 Nm @ 1,100–1,400 rpm |
| Transmission | HW19710, 10 forward + 2 reverse gears |
| Front Axle | HF7 (Steyr technology) |
| Rear Axle | HC16 tandem, double‑reduction hub |
| Clutch | D430 diaphragm type |
| Steering | ZF8098 hydraulic power steering |
| Cab | HW76, 2 seats + 1 sleeper, with A/C |
| Tires | 12.00R20 (10 + 1 spare) |
| Suspension | Front 9‑leaf, rear 12‑leaf heavy‑duty springs |
| Fuel Tank | 400 L |
| Wheelbase | 3,225 + 1,350 mm |
| Overall Dimensions (L×W×H) | Approx. 6,800 × 2,496 × 3,718 mm |
| Kerb Weight | Approx. 8,800 kg |
| Max Speed | 90 km/h |
| Brake System | Dual‑circuit air brake + spring parking brake + exhaust brake |
Ensures excellent mobility on muddy, sandy, or uneven terrain.
Delivers up to 371 HP with peak torque of 1,350–1,500 Nm, capable of pulling heavy trailers fully loaded.
HW19710 10‑speed gearbox, STR front axle, and HC16 tandem rear axles with hub reduction for extra torque.
High‑strength steel frame and heavy‑duty suspension withstand harsh roads and extend service life.
HW76 cab with air conditioning, adjustable suspension seat, and four‑point floating mounts to reduce fatigue.
The 6×6 all-wheel drive system distributes power to all six wheels, ensuring maximum traction and superior off-road mobility across muddy, sandy, or highly uneven rough terrain.
It features the HW19710 transmission, which delivers 10 forward gears and 2 reverse gears, allowing optimal power distribution and smoother gear shifts under heavy loads.
The truck is powered by a WD615.69 Euro II engine with a displacement of 9.726 liters, generating 336 horsepower (247 kW) and a peak torque of 1,350 Nm.
The overall dimensions are approximately 6,800 × 2,496 × 3,718 mm, with a wheelbase of 3,225 + 1,350 mm. It is equipped with a large-capacity 400-liter fuel tank built for long-haul operations.
Yes, the HW76 cabin is equipped with 2 seats, 1 sleeper bunk, air conditioning, and a four-point floating suspension system designed to minimize shock and reduce driver fatigue.
The truck utilizes a dual-circuit compressed air brake system combined with a spring parking brake and an exhaust brake to ensure safe and reliable stopping power even under heavy loads.
